Product Details
- Size: 30cm
- Place of Origin: Shandong
- Brand Name: SDEYI
- Model Number: DYRS-03
- Weight: 3.000 kg

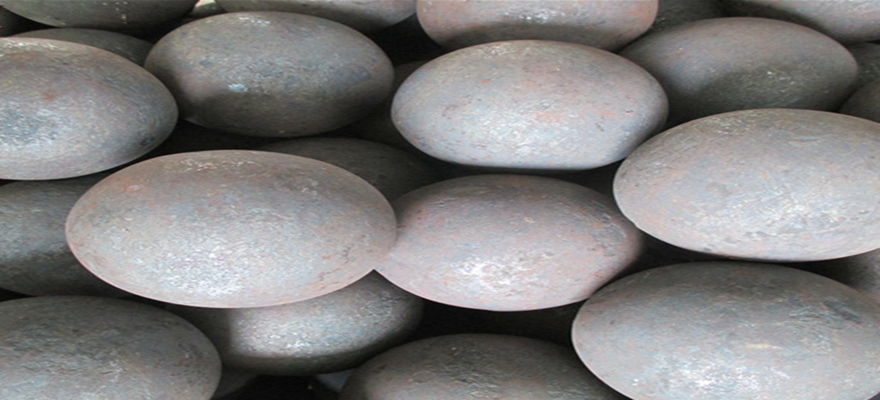

Rolled& Forged Steel Grinding Balls B2 | |||
Diameter | Surface hardness | Core Hardnes | Chmical Composition |
(MM) | (HRC) | (HRC) | (%) |
25 | 62-65 | ≥60 | C:0.75-0.85 Si:0.17-0.37 Mn:0.7-1.0 Cr:0.4-0.8 P:≤0.020 S:≤0.015 Ni≤0.020 Cu≤0.020 Al:0.010-0.060 |
30 | 62-65 | ≥60 | |
40 | 62-65 | ≥60 | |
50 | 62-65 | ≥60 | |
60 | 62-65 | ≥60 | |
70 | 61-63 | ≥60 | |
80 | 61-63 | ≥58 | |
90 | 61-63 | ≥58 | |
100 | 61-63 | ≥58 | |
110 | 61-63 | ≥55 | |
120 | 61-63 | ≥55 | |
130 | 61-63 | ≥50 | |
140 | 61-63 | ≥50 | |
150 | 61-63 | ≥50 | |
Rolled& Forged Steel Grinding Balls B3 | |||
Diameter | Surface hardness | Core Hardnes | Chmical Composition |
(MM) | (HRC) | (HRC) | (%) |
25 | 62-65 | ≥60 | C:0.55-0.65 Si:0.20-0.40 Mn:0.75-0.90 Cr:0.85-1.2 P:≤0.020 S:≤0.015 Ni≤0.020 Mo:0.05-0.12 Cu:≤0.020 V:0.03-0.10 Ti:0.010-0.060 Al:0.010-0.060 |
30 | 62-65 | ≥60 | |
40 | 62-65 | ≥60 | |
50 | 62-65 | ≥60 | |
60 | 62-65 | ≥60 | |
70 | 61-63 | ≥60 | |
80 | 61-63 | ≥58 | |
90 | 61-63 | ≥58 | |
100 | 61-63 | ≥58 | |
110 | 61-63 | ≥55 | |
120 | 61-63 | ≥55 | |
130 | 61-63 | ≥50 | |
140 | 61-63 | ≥50 | |
150 | 61-63 | ≥50 | |
Rolled& Forged Steel Grinding Balls B6 | |||
Diameter | Surface hardness | Core Hardnes | Chmical Composition |
(MM) | (HRC) | (HRC) | (%) |
25 | 62-65 | ≥60 | C:0.97-1.03 Si:0.20-0.30 Mn:1.00-1.10 Cr:0.50-0.60 P:≤0.025 S:≤0.025 Cu:≤0.06 Ni:≤0.05 Mo≤0.02 Al:0.03-0.04 |
30 | 62-65 | ≥60 | |
40 | 62-65 | ≥60 | |
50 | 62-65 | ≥60 | |
60 | 62-65 | ≥60 | |
70 | 61-63 | ≥60 | |
80 | 61-63 | ≥58 | |
90 | 61-63 | ≥58 | |
100 | 61-63 | ≥58 | |
110 | 61-63 | ≥55 | |
120 | 61-63 | ≥55 | |
130 | 61-63 | ≥50 | |
140 | 61-63 | ≥50 | |
150 | 61-63 | ≥50 | |
- Size: 30cm
- Place of Origin: Shandong
- Brand Name: SDEYI
- Model Number: DYRS-03
- Weight: 3.000 kg
